Migrate IHR API

• Organization: Internet Health Report
• Project: Migrate IHR API
• Mentors: Romain Fontugne, Dimitrios Giakatos
• Contributor: Ibraam Nashaat
• GitHub: Ibraam-Nashaat
• LinkedIn: Ibraam Nashaat
• GSoC Proposal: Proposal Link

1. Project Goals

The goal of this project is to modernize and simplify the Internet Health Report (IHR) API by replacing its outdated Django 2.2.27 implementation with FastAPI, a lightweight, high-performance, asynchronous framework that provides built-in interactive API documentation via Swagger UI.

This migration will:

• Migrate all API endpoints from Django to FastAPI.

• Remove deprecated and unused code to reduce complexity and improve maintainability.

• Containerize the application with Docker to ensure a consistent and portable runtime environment across various deployment setups.

By implementing these architectural changes, the project aims to improve performance, simplify maintenance, and provide a cleaner, more modular codebase for future development.

2. Implementation

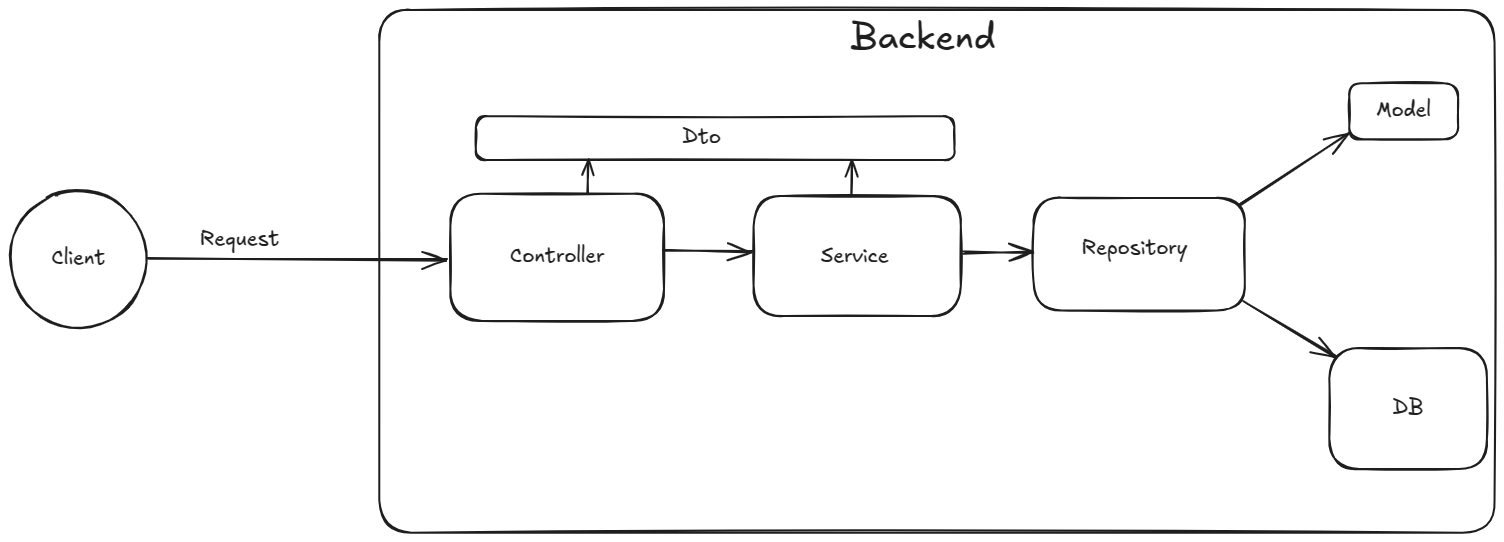

This project follows a Controller-Service-Repository architecture for modularity, scalability, and maintainability. The layers are clearly separated for cleaner code and easier testing.

• Controller Layer : Handles HTTP requests, calls services, and returns structured responses.
• Service Layer : Encapsulates business logic, enforces rules, and delegates data access to repositories, keeping controllers decoupled from domain logic.
• Repository Layer : Abstracts database interactions, providing structured and reusable data access methods.
• DTOs : Define and validate data formats between layers, ensuring consistent API requests/responses and isolating models from external communication.
• Model Layer : Defines database schemas, relationships, field types, and constraints, mapping directly to tables and integrating with repositories.

2.1. API Endpoints Migration

Migrated the following endpoints from Django to FastAPI:

• /networks/
• /countries/
• /disco/events/
• /hegemony/
• /hegemony/alarms/
• /hegemony/countries/
• /hegemony/prefixes/
• /hegemony/cones/
• /network_delay/
• /network_delay/locations/
• /network_delay/alarms/
• /metis/atlas/selection/
• /metis/atlas/deployment/
• /tr_hegemony/

2.2. Dockerization

Containerized the application with Docker to provide a consistent, portable runtime environment for all deployment setups.

3. Merged Pull Requests

The merged pull requests that contain my work:

1. PR #33 – Added data migration steps
2. PR #32 – Updated allowed CORS origins
3. PR #31 – Return recent results when timebin fields are not provided
4. PR #30 – Added page size to .env file
5. PR #29 – Added /hegemony, /hegemony/countries and /hegemony/prefixes endpoints
6. PR #22 – Added /disco/events, /tr_hegemony and /hegemony/alarms endpoints
7. PR #17 – Added network delay and metis endpoints and removed link endpoints
8. PR #15 – Added /network_delay/locations endpoint
9. PR #13 – Added link forwarding endpoint
10. PR #11 – Added /link/delay endpoint
11. PR #9 – Added /networks endpoint
12. PR #8 – Removed some foreign key constraints and returned some primary keys to integer
13. PR #6 – Added database models and /hegemony/cones endpoint
14. PR #2 – Country endpoint
